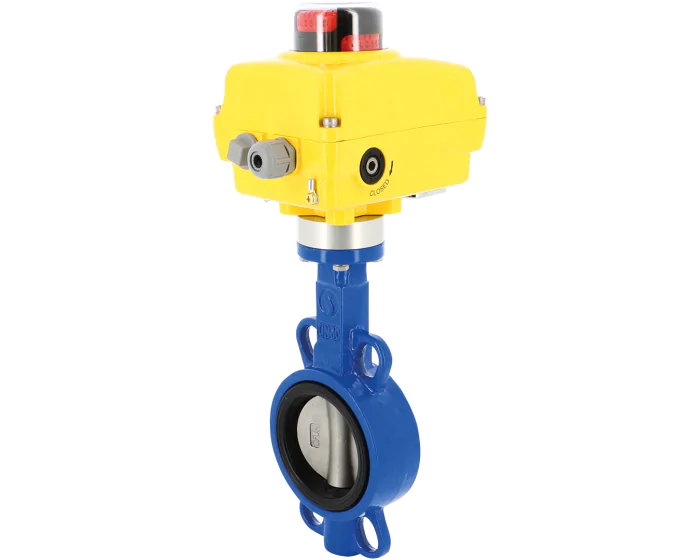

The 1123 butterfly valve has a ductile iron body, 316 stainless steel disc and EPDM seat. It is actuated with an SA/NA electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 416 |
| Manual override | By key |
| Declutchable | No |
| DN | 32 - 40 |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 33.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric 230 V AC 32 - 40 | 262103023010 | S1004272 |
€471.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' 230 V AC | 262104023010 | S1004273 |
€472.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 230 V AC | 262105023010 | S1004274 |
€480.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' 230 V AC | 262106023010 | S1004275 |
€493.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' 230 V AC | 262107023010 | S1004276 |
€497.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' 230 V AC | 262108023069 | S1004277 |
€613.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' 230 V AC | 262109023130 | S1004278 |
€1,116.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' 230 V AC | 262110023130 | S1004279 |
€1,226.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' 230 V AC | 262111023150 | S1004280 |
€1,707.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' 230 V AC | 262112023180 | S1004281 |
€2,227.69
(excl. btw)
|
add to cart |
